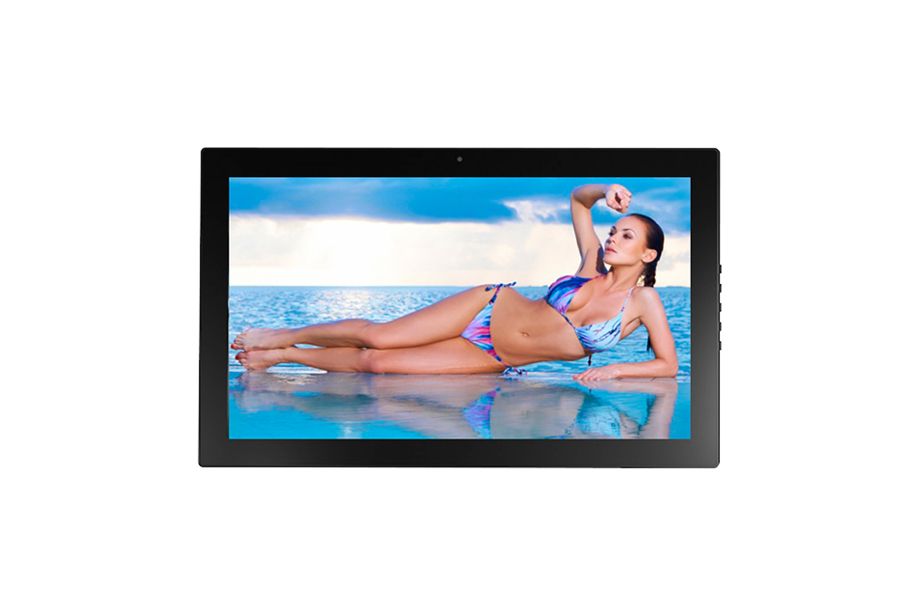

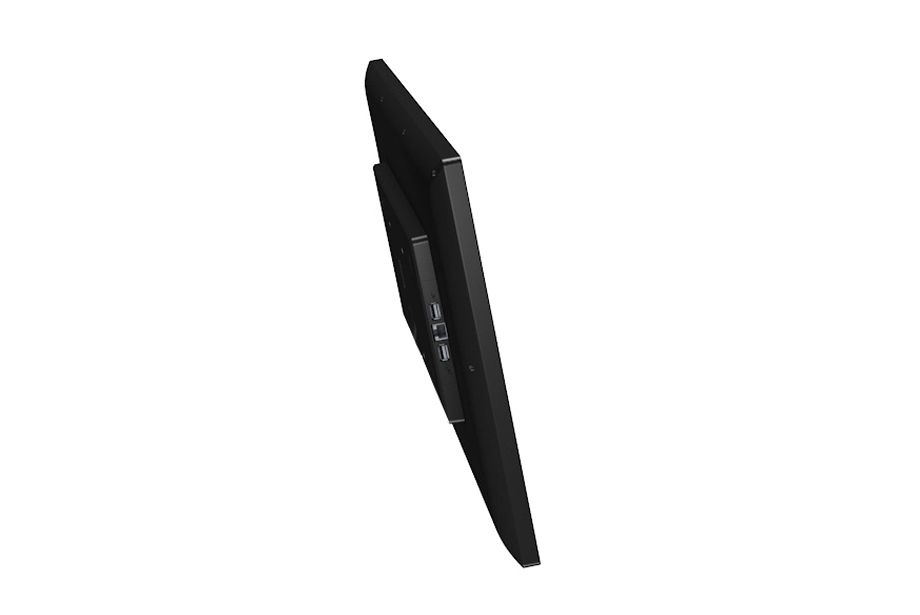

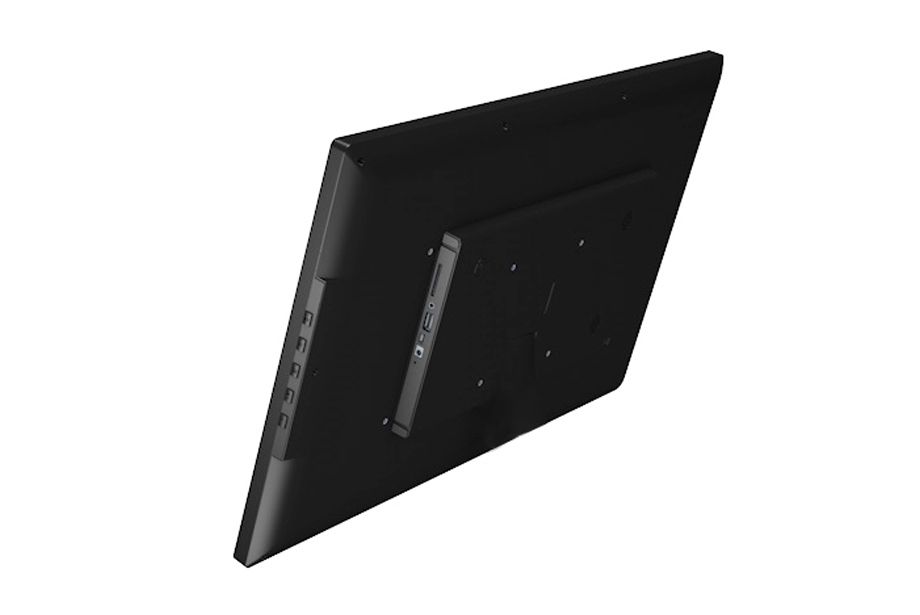

Bike Screen

Bike screen is a kind of product designed for indoor exercise bike and treadmills. It helps the users to enjoy the exercise with different circumstance screen, making the feeling like outdoor exercise.

16/17/19/22/ 24/ 27/32 Inches are available

Kontech exercise bike screen feaures:

Supports camera with microphone, the users can make a video call with their friends/families when taking an exercising.

Supports 10 Points PCAP touch with sweat resistant design

Built-in Blutoothnd & supports 5MP Camera


Details Parameters Application
Bike Screen/ monitor for bike
         21.5 inch LCD Monitor for bike Specs
Panel:21.5" LED backlight
Touch:10 points capacitive touch
Resolution:1920*1080
Brightness:400 cd / ㎡
Contrast ratio:1000:1
Viewing angle: (H) 178°/ (V)178°
Response time:8ms
Display colours:16.7 million true colour
Voltage:220V
Aspect ratio:16:9
PCB:RK3399, 6 cores, 1.8 GHz
Android:10.1
RAM + ROM:4 + 64 GB
HDMI Output:×1, supports 1080P@60Hz,4kx2k@60Hz output
Mipi Camera:supports 5MP Camera (not supports angle)
USB:×2 (1×USB 3.0, 1×USB 2.0,)
Debug Port:USB-A
LAN:Supports 10/100M/1000M
Wifi:Supports
Bluetooth:5.0
Audio:4R/20W & 8R/10W output, Microphone in
Heart Rate MeasurementSupports Heart Rate Measurement over Bluetooth from watches and Heart Rate straps (needs customer to provide apps, need to send apps to us to install if need to test before shipment)
3.5mm headphone port×1
NFC:NA
Dimension:540.21*331.67*42.8mm

Bike,Exercise bike
