Curved LCD Monitor

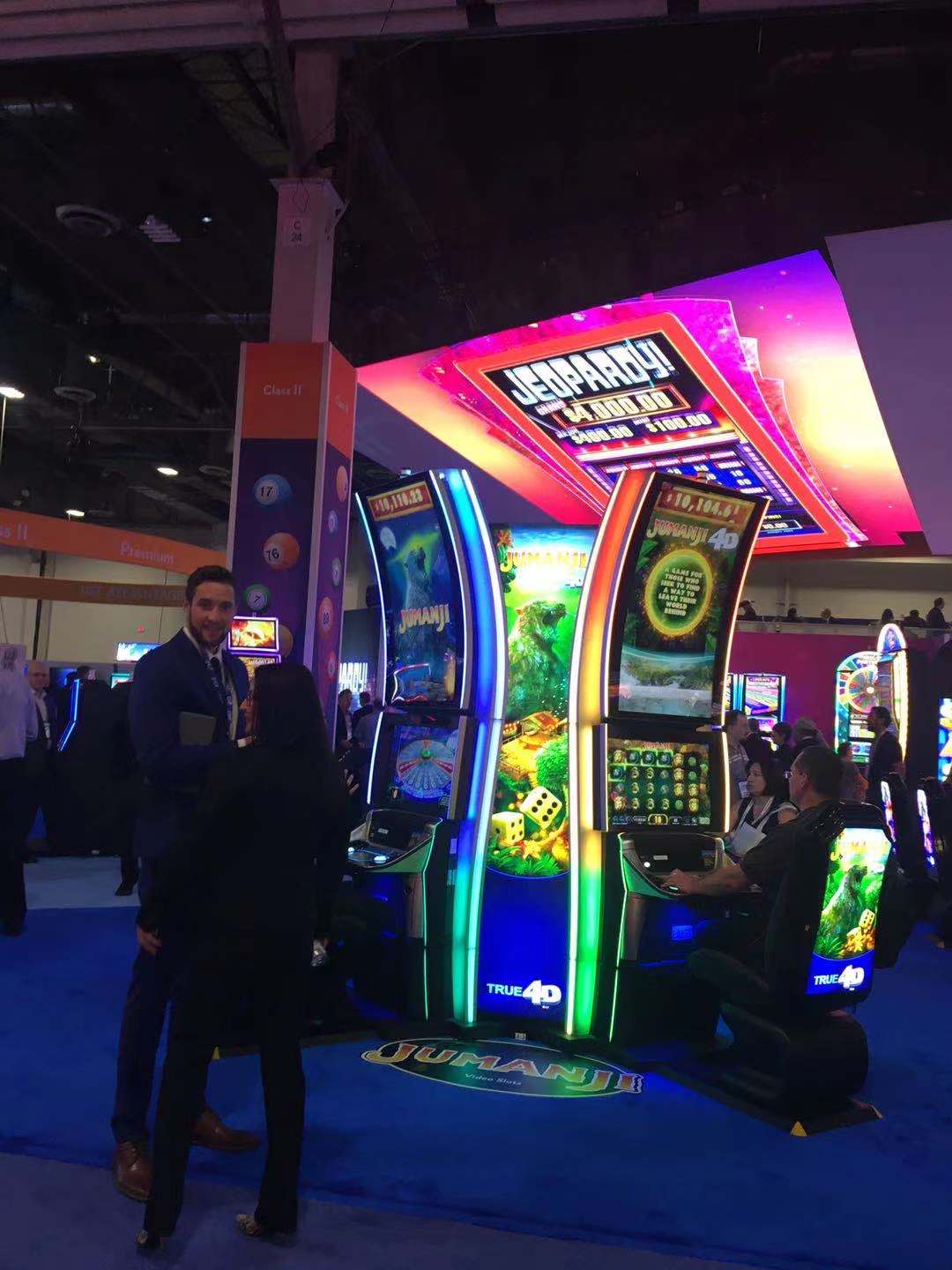

LED lights bar for surrounding display, 10-touch PCAP designed, best for gaming machine in Casino market.
High-quality PCB-mounted LEDs, no dark corners.
LED lights bar for surrounding display
RGB LED light bar available
True-flat, black closed-frame designs
10-touch PCAP for windows 7 or later, Linux 4.4 or later
Details Parameters Application
kontech-Curved Display-feature

Name43" J Type Curved Closed Frame Touch Monitor with Front Facing LED Light
ModelK43CTMCFJL
LCD Panel Parameters
Display TechnologyActive Matrix TFT-LCD With LED Backlight
Aspect Ratio16:09
Active Area (W x H)941.18×529.42mm
Native Resolution3840×2160@60Hz
Response Time (Typ.)8ms
Display Colors1.07B
Luminance (Typ.)450nits; with P-Cap 405nits
Contrast Ratio (Typ.)4000:01:00
Viewing Angle (Typ.)Horizontal (left/right) CR≥10 89°/89° ; Vertical (up/down) CR≥10 89°/89
Touch Screen Parameters
Touch TechnologyProjected Capacitive (P-Cap)
Surface TreatmentTempered or Chemically Strengthened;Optional: Anti-Glare, Antimicrobial
Active Area941.18×529.42±0.5mm
Thickness(Total)4.65±0.3mm
Light Transmission≥83%
Response Time8ms
Touch Screen InterfaceUSB
Touch Point10
Overall Parameters
Case/Bezel ColorBlack
RadiusR1500
Mounting OptionsVESA: 600×300 mm
Outline Dimensions(W×H×D)1026.18mm × 625.60mm× 157.29mm
Power SupplyInput Voltage Range: +24VDC ± 5%
On Screen Display (OSD)Control (back): Power, Auto, Up, Down, Menu
Power ConsumptionMAX: 120W
Operating Altitude≦3000m
Temperature RangeOperating: 0℃ to 40℃, storage: -20℃ to 60℃
Humidity (Non Condensing)Operating: 20% to 80%, storage: 10% to 90%
I/OHDMI, DVI, DP, USB
AccessoriesCables: HDMI×1, USB×1
Carton Box Dimensions(1 units in one carton)1145mm (L) × 240mm (W) × 785mm (H)
WeightGross: 24kg; Net: 30kg
MTBF50,000 hours demonstrated
LED Lights ColorMulticolor
LED Lights Location4 LED lights bar (Front, Edge & Back )
Agency ApprovalsCE , FCC
Warranty2 years
